Static CSV

The Static CSV data source allows you to quickly craft a data source to use in your report. This data source is ideal when you need some test data to begin creating a new report.

Example

1) In the Data Panel of a report, click on the images/download/attachments/6035679/AddButton.PNG and select Static CSV

2) Give the data source a name by filling in the Data Key property with the following: Downtime_By_Site

3) Copy the following data and paste it into the Data field:

Downtime_By_Site
Equipment,Time,Site
Motor,15,Site A
Motor,23,Site A
Conveyor Line,148,Site B
Pallet Wrapper,58,Site A
Motor,96,Site C
Conveyor Line, 23, Site B
Palletizer,40,Site B
Palletizer,30,Site D
Conveyor Line,56,Site A
Pallet Wrapper,45,Site C
Motor,43,Site C
Conveyor Line,87,Site D
Motor,23,Site D

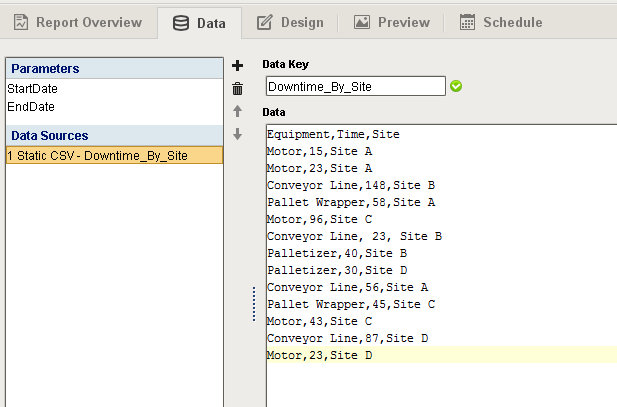

4) The data source should look like the picture below:

images/download/attachments/6035679/ConfigureStaticCSV.PNG

5) Switch to the Design panel, expand Datasources in the Key Browser, and you'll see the Static CSV available for use

images/download/attachments/6035679/keybrowser.PNG
