Using Images in the Designer

Images such as PNGs, JPGs, or GIFs can be imported and used inside of windows in Ignition.

To use an image on a window

  1. Drag an Image component from the component palette onto the window.

  2. From the Property Editor, select the image component's Image Path property, click on the Browse icon.

    images/download/attachments/6034436/Image_Path_icon.png

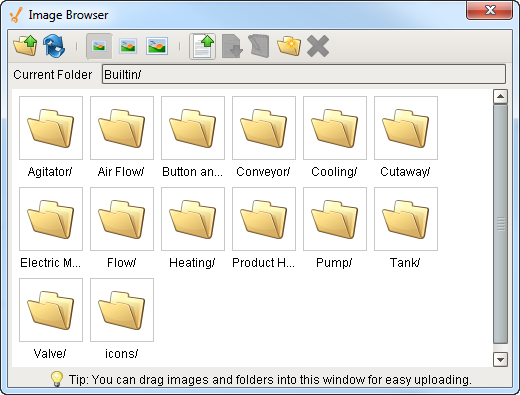

  3. From the Image Browser, look through the different folders for an image file you want and double-click on it to display it in your window.
    The path to the image is now displayed in the components Image Path property.

    images/download/attachments/6034436/Image_Browser_2.png

Image Manager

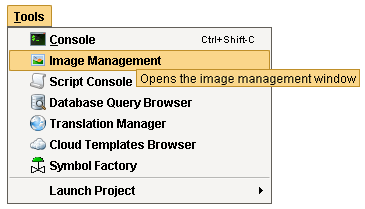

In addition to the method described above, you can also import images using the Image Manager available from the Tools > Image Management menu.

images/download/attachments/6034436/Tools_Image_Management.png

Exporting and Importing Projects

When the project is exported, the images are not included only the path associated with the Image Path property of the image component is. When you import the project into a different Ignition server, the file paths associated with the image components will not have any images to display. It is possible to export the images to a local disk that can accompany the project. The export function is located in the Image Manager

Ignition does not support bitmap files.
