Using Keyboard Shortcuts in the Designer

You can interact with screens and more by using some of the popular keyboard shortcuts in the Designer.

To...

Use these Keyboard Shortcuts

Nudge
Moves selected component(s) in the direction of the arrow key by the default nudge distance.

images/download/attachments/6033975/image2015-3-13_9_57_11.png

Alt-Nudge
Same as Nudge, but uses the “alt-nudge” distance.

images/download/attachments/6033975/image2015-3-13_9_58_27.png

Resize Right
Moves the right edge of the component left or right. Add Alt to use the alt-nudge distance.

images/download/attachments/6033975/image2015-3-13_9_59_22.png

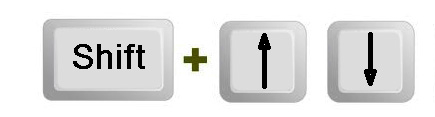

Resize Bottom
Moves the bottom edge of the component to top or bottom.

images/download/attachments/6033975/image2015-3-13_10_2_6.png

Resize Left
Moves the left edge of the component left or right.

images/download/attachments/6033975/image2015-3-13_10_3_44.png

Resize Top
Moves the top edge of the component to top or bottom.

images/download/attachments/6033975/image2015-3-13_10_7_15.png

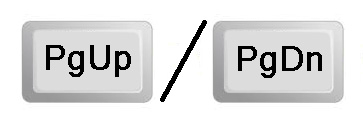

Move Forward/Move Backward
Moves selected component(s) in the Z-order.

images/download/attachments/6033975/image2015-3-13_10_7_37.png

Move to Front/Move to Back
Moves selected component(s) to Front or Back.

images/download/attachments/6033975/image2015-3-13_10_8_15.png

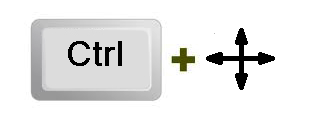

Copy-Move
Copies the component when holding Ctrl while doing a mousemove.

images/download/attachments/6033975/image2015-3-13_10_8_34.png

Orthogonal-Move
Restricts to only moving straight up, down, left, or right when holding Shift while doing a mousemove.

images/download/attachments/6033975/image2015-3-13_10_14_27.png

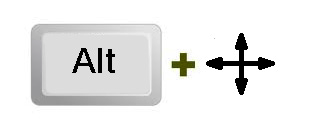

Selection-Move
Drags the current selection when holding Alt while dragging.

images/download/attachments/6033975/image2015-3-13_10_14_48.png

Copy-Axis-Move
Combines copy move with axis move.

images/download/attachments/6033975/image2015-3-13_10_15_12.png

Proportional Resize
Resizes a component while maintaining its aspect ratio.

images/download/attachments/6033975/image2015-3-13_10_53_38.png

On-Center Resize
Resizes the selection using the center as the anchor point.

images/download/attachments/6033975/image2015-3-13_10_54_23.png

Select All
Selects all components that are siblings of the selected component.

images/download/attachments/6033975/image2015-3-13_10_54_44.png

Select Same Type
Selects all components that are siblings of the selected component and the same component type.

images/download/attachments/6033975/image2015-3-13_10_55_6.png

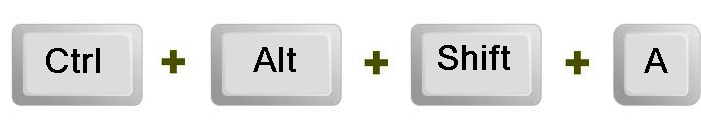

Select Same Type in Window
Selects all components in a window that are the same type as the selected component.

images/download/attachments/6033975/image2015-3-13_10_56_1.png

Layout
Opens Layout Constraints to let you specify layout for the component(s).

images/download/attachments/6033975/image2015-3-13_10_57_27.png

Size & Position
Opens Size & Position to let you specify exact size and position for selected component or window.

images/download/attachments/6033975/image2015-3-13_10_58_40.png

Customizer
Opens Custom Properties to let you configure complex component properties.

images/download/attachments/6033975/image2015-3-13_11_1_23.png

Customizer 2
Opens the second Customizer if available.

images/download/attachments/6033975/image2015-3-13_11_1_42.png

Jython
Opens Component Scripting to let you configure actions for component or window.

images/download/attachments/6033975/image2015-3-13_11_2_12.png

Security
Opens Security Settings to let you set security for Component(s) or window.

images/download/attachments/6033975/image2015-3-13_11_2_28.png

Script Modules
Opens Script Module Editor for reusable Jython functions.

images/download/attachments/6033975/image2015-3-13_11_2_46.png

Save
Saves the project.

images/download/attachments/6033975/image2015-3-13_11_3_13.png

Open
Opens the Open/Create Project to let you select a different project.

images/download/attachments/6033975/image2015-3-13_11_3_40.png

Undo
Undoes the last action.

images/download/attachments/6033975/image2015-3-13_11_4_2.png

Redo
Gets rid of the last undo action.

images/download/attachments/6033975/image2015-3-13_11_4_30.png

Copy
Copies selected component(s) or window.

images/download/attachments/6033975/image2015-3-13_11_8_3.png

Duplicate
Duplicates selected component(s) or window.

images/download/attachments/6033975/image2015-3-13_11_8_40.png

Cut
Cuts selected component(s) or window.

images/download/attachments/6033975/image2015-3-13_11_9_44.png

Paste
Pastes selected component(s) or window in clipboard. Pasted component(s) wait for position before pasting.

images/download/attachments/6033975/image2015-3-13_11_9_59.png

Immediately Paste
Places pasted component(s) at the same location where they were copied/cut.

images/download/attachments/6033975/image2015-3-13_11_10_17.png

Comment/Uncomment Lines of Code
Quickly comment or uncomment lines of a script or query in Designer.

images/download/attachments/6033975/image2015-10-22_15_50_42.png

Cancel
Cancels a pending paste operation, deselects the current row of a table, cancels dragging components onto window.

images/download/attachments/6033975/image2015-3-13_11_10_36.png

Find/Replace
Opens Find/Replace to let you Search and replace the project based on string, pattern, or regex.

images/download/attachments/6033975/image2015-3-13_11_11_6.png

Delete
Deletes the current selection.

images/download/attachments/6033975/image2015-3-13_11_11_25.png

Snap to Grid
Toggles whether or not moving and resizing components snaps to the grid.

images/download/attachments/6033975/image2015-3-13_11_11_52.png

Snap to Guides
Toggles whether or not moving and resizing components snaps to guides.

images/download/attachments/6033975/image2015-3-13_11_12_13.png

Console
Opens the Output Console.

images/download/attachments/6033975/image2015-3-13_11_13_42.png

Help
Launches the Ignition User Manual in a web browser.

images/download/attachments/6033975/image2015-3-13_11_14_9.png

Preview Mode
Toggles preview/design mode.

images/download/attachments/6033975/image2015-3-13_11_15_56.png

Rename
Renames the selected item (tag, window, transaction group, component, and so on).

images/download/attachments/6033975/image2015-3-13_11_16_17.png

Launch Staging Project
Launches the staging client from the Designer.

images/download/attachments/6033975/image2015-3-13_11_16_34.png

Launch Published Project
Launches published client from the Designer.

images/download/attachments/6033975/image2015-3-13_11_16_53.png

Update Project
Updates project to server. Receives concurrent edits from other Designers.

images/download/attachments/6033975/image2015-3-13_11_17_15.png

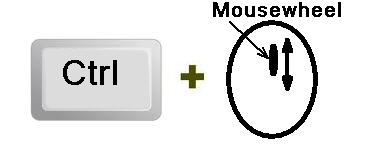

Zoom
Zooms in/out in the Designer.

images/download/attachments/6033975/image2015-3-13_10_35_7.png

Lasso Select
Draws a lasso and every component in the path will be selected.

images/download/attachments/6033975/image2015-3-13_11_17_57.png
