GCU

The Gateway Control Utility, (or “GCU”), is a lightweight standalone application that provides information about the Gateway. You can use the GCU to monitor the Ignition Gateway and perform high-level tasks that aren't available inside of the web application. It provides basic administrative controls, such as stopping and restarting the server and setting the ports used between the Gateway and clients.

Note: The Gateway Control Utility must run on the same machine as the Ignition Gateway and requires administrative privileges.

To launch the GCU in Windows

Fom the Start menu, go to All Programs > Inductive Automation > Ignition > Launch Gateway Control Utility.

You can also launch GCU from the command-line or from the Start > Run dialog by typing

launch -gcu

To launch GCU in Linux

Open a command shell and type

gcu

If you receive an error saying “gcu can't be found”, add the Ignition installation directory to your system path.

If you are running in a headless Linux environment or you have logged into the Linux machine through an SSH shell, the GCU functions are still available in command-line fo rm. See Command-line Utility below.

GCU Window

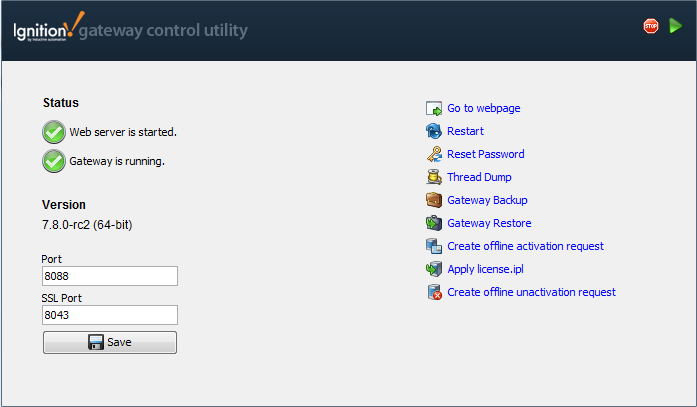

When GCU is launched, the following window is displayed:

images/download/attachments/6034919/Changing_GW_Ports_Fixed.png

Status

On the upper-left of the window, Status shows the state of the Tomcat web server and the Ignition Gateway web application. It is possible for the web server to be running while Gateway has failed. For example, this can occur when the Gateway has faulted on startup.

Version

The version of Ignition that is running on this computer.

Ports

On the lower-left of the window, Port shows the primary, non-encrypted port used by clients and web pages to communicate with the server. You can see the ports that you are using and you can change the ports and click the Save button to save the ports to the Gateway. Note that Gateway must be restarted for the changes to take effect.

Go to web page

On the upper-right of the window, Go to web page launches a web browser to the Gateway home page.

Restart

On the upper-right of the window, Restart restarts the Ignition web server.

Reset Password

On the upper-right of the window, Reset Password will reset the root password of the system. This default is Username: admin, password: password and will grant access to the Gateway Webpage. Normally, this is not considered a security risk, because the GCU can only be used from the machine the software is installed on, which should be secure. However, it is important to know about this feature here so that the GCU can be removed if the machine can't be properly secured, for example when the server is also used as a client.

Thread Dump

On the upper-right of the window, Thread Dump downloads a file with the current states of all threads in the server. Inductive Automation uses this file for troubleshooting problems.

Gateway Backup

On the right of the window, Gateway Backup downloads a Gateway backup .gwbk file to the local file system. This creates the exact same file as the Gateway Backup in the Gateway Webpage. A Save dialog opens to let you specify where you want to save the file.

Gateway Restore

On the right of the window, Gateway Restore asks for a Gateway backup .gwbk file and restores it. This does the exact same restore as the Gateway Restore in the Gateway Webpage. Note: this will completely overwrite your existing Gateway.

Create offline activation request

On the lower-right of the window, Create offline activation request creates a file to use on the offline activation process. This is the same file created in the manual activation process.

Apply license.ipl

On the lower-right of the window, Apply license.ipl asks for an .ipl file to use to complete the offline activation process. This is the same file used in the manual activation process.

Create offline unactivation request

On the lower-right of the window, Create offline unactivation request creates a file to use on the offline activation process. This is the same file created in the manual unactivation process.

Command-line Utility

All the functions in the GCU are also available as a command-line utility for both Windows and Linux.

To run the utility, open a command shell and type:

gwcmd <option>

Options are as follows:

Options	Description
`a,-–activate <CDk-key> Offline activation`	Creates an `activation_request.txt` file that can be used to request a `license.ipl` file from the Inductive Automation website. You must specify the CD-key to use for activation. The `activation_request.txt` file is saved in the current directory.
`-b,--backup <new filepath>`	Downloads a Gateway backup`.gwbk` file and saves the file to the specified path. The path can be either an absolute path or a relative path. If a new file name is not specified at the end of the path, the file name becomes the current date and time along with the `.gwbk` extension. You will be prompted whether it is OK to overwrite the file if another `.gwbk` file with the same name already exists. You can override with the `-y` option to force the file to always be overwritten.
`-h,--help`	Shows the usage for this command.
`-i,--info`	Retrieves server status and port information from the Gateway if it is running.
`-k,--port <new port>`	Changes the Gateway http port.
`-l,--sslport <new port>`	Changes the Gateway https port.
`-p,--passwd`	Resets the Gateway login password.
`-r,--restart`	Restarts the Gateway.
-s,--restore	Restores a gateway backup (.gwbk) file.
`-t,--tdump`	Performs a thread dump in the Gateway and prints the dump to the command-line.
`-u,--unactivate Offline unactivation`	Creates an `unactivation_message.txt` file that you can use to unactivate a license via the Inductive Automation website. The `unactivation_message.txt file` is saved in the current directory.
-w,--`uselicense` `<license.ipl path>`	Applies a `license.ipl` file that was downloaded from the Inductive Automation website. You must supply the location of the `license.ipl` file. If it is in the current directory, use `license.ipl` for the location.
`-y,--promptyes`	Automatically answers `yes` to any prompt that may appear in the above commands, such as permission to overwrite an existing file.
